    double floor – GRATING METAL SHEET

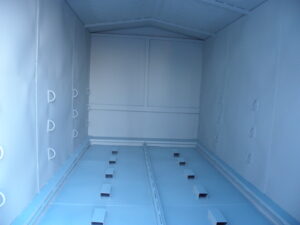

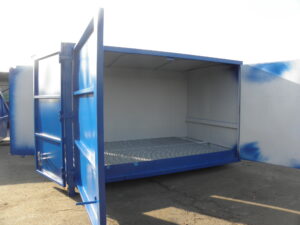

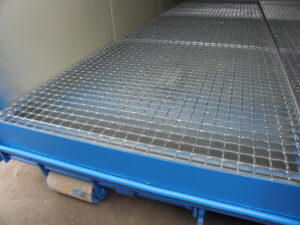

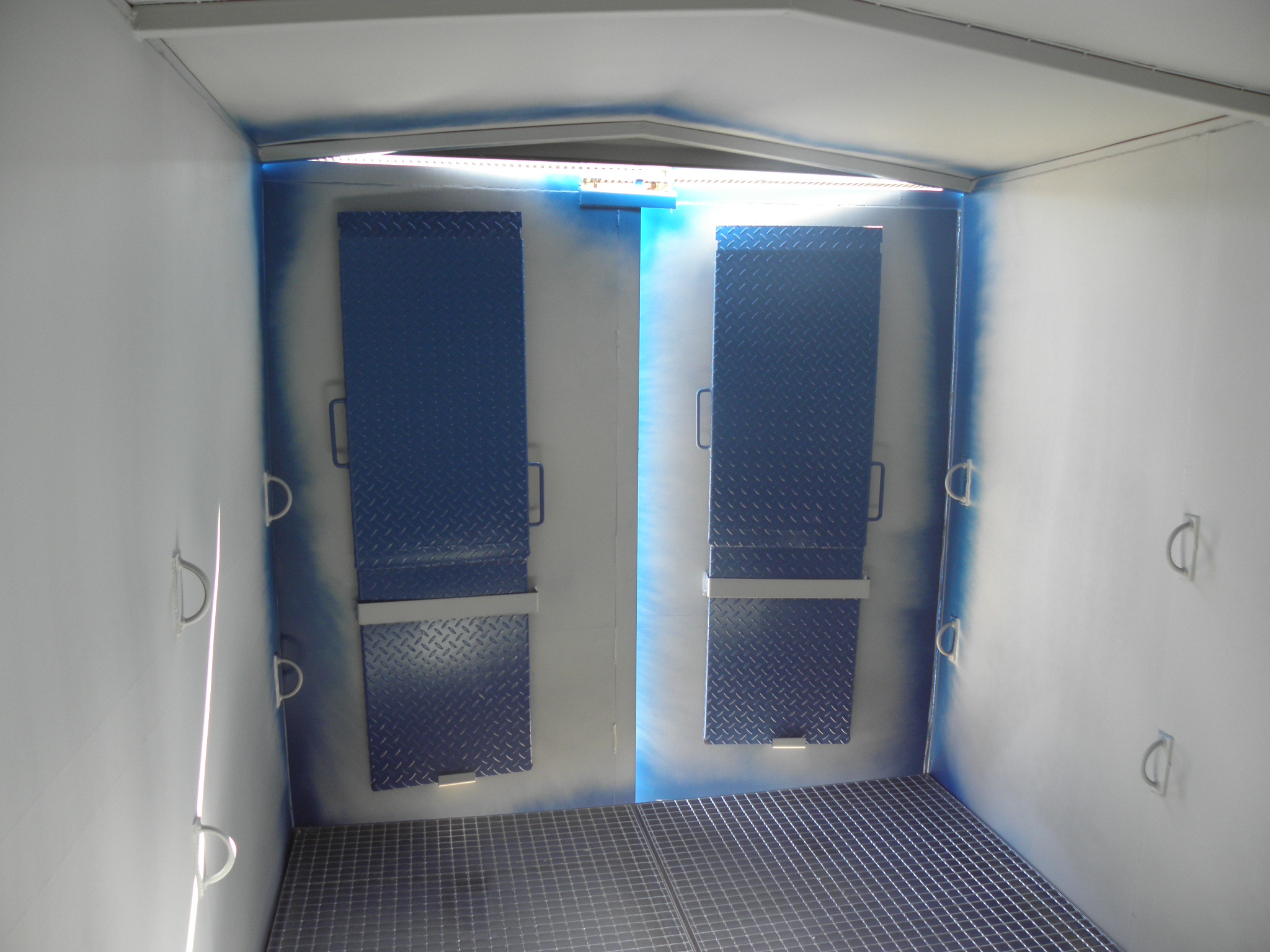

    ECO-containers are used for the storage and handling of liquid and solid substances that are in closed barrels and packages. The double floor covered with a grating sheet metal serves as a catch basin for any drips.


    • Konstruktion Brukov, nach DIN 30 722.1

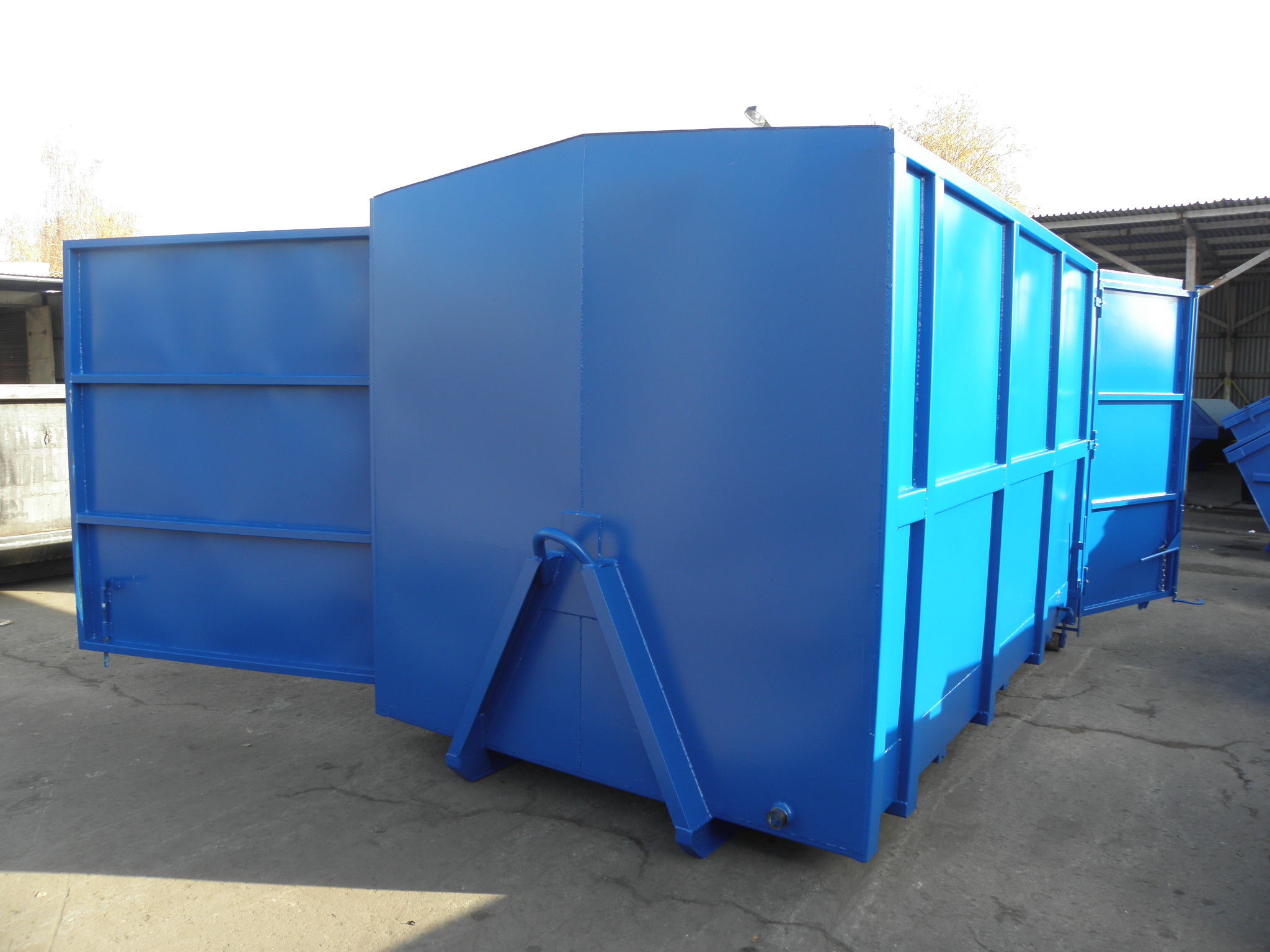

    • Aufnahmebügel 900 mm (Hakendurchschnitt  35 mm)
    • Längsträger – INP 120, Qualität S 235 JR, Abstand: 1060 mm
    • Bodenblech 3 mm, Qualität S235JR (ST37-2)
    • Seitenblech 2 mm, Qualität S235JR (ST37-2)
    • feste Seitenwände mit Verstrebungen
    • Längsholm –  Vierkantrohr
    • Boden-Wand 90°
    • Stahlablaufrollen (wechselbar) und Scharniere abschmierbar

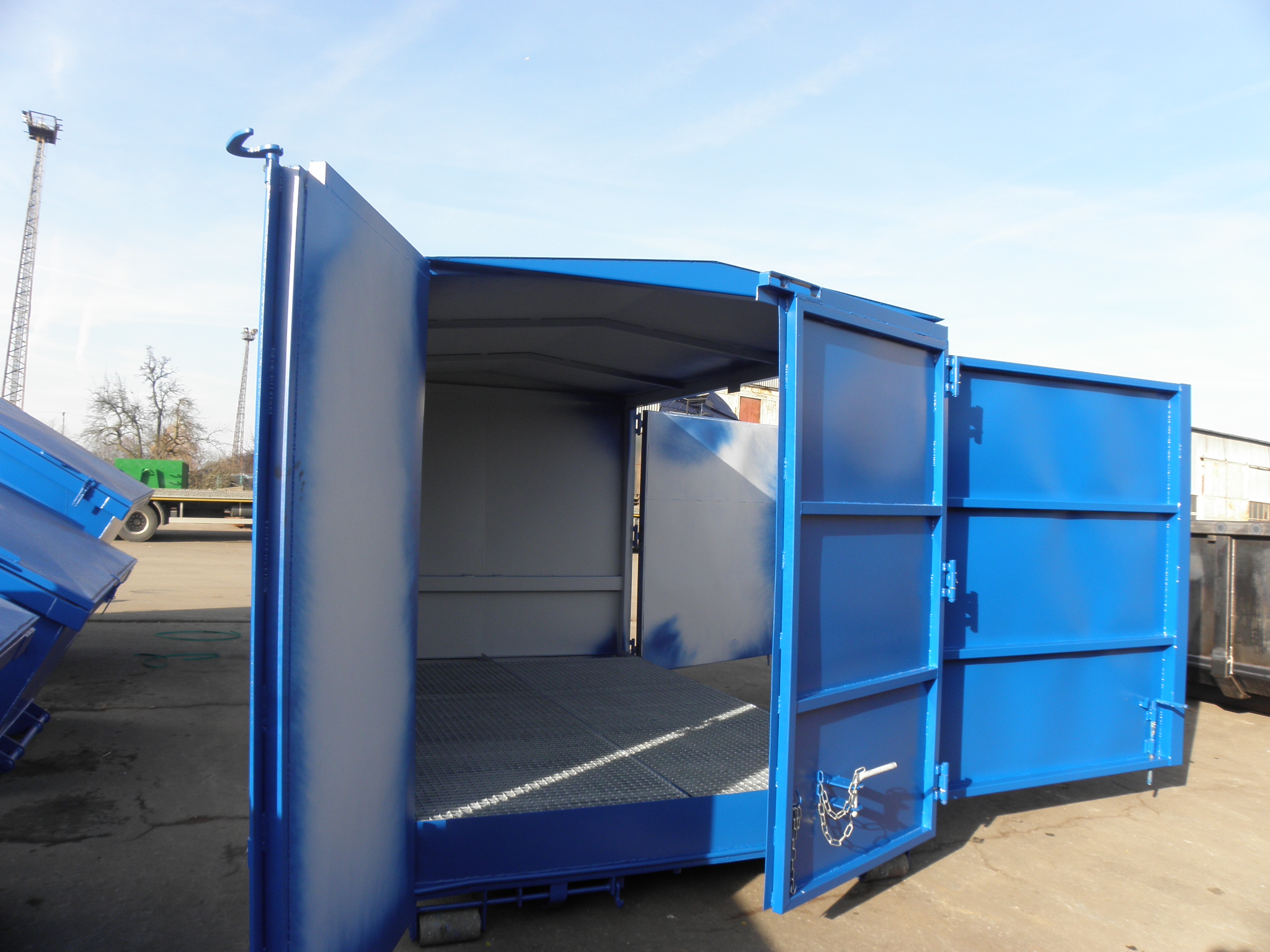

    • door with or without rubber seal:

                            a) double-winged door with upper hooke type “S” – protection against unintentional opening

                            b) single door with rivet seal – tighten on pressure screws

    • roof:

                            a) fixed saddle roof

                            b) steel winch lifting roof

    • waterproof welded floor including waterproof test
    • drain velve
    • primer 60 my – outside and inside of the container
    • one-colour top coat synthetic varnish 40 my – only inside of the container, in RAL, according to the customer’s wishes
    • load capacity 10,000 kg
    • all materials used are certified
    on request:
    • different thicknesses and quality of sheet metal
    • courting eyes
