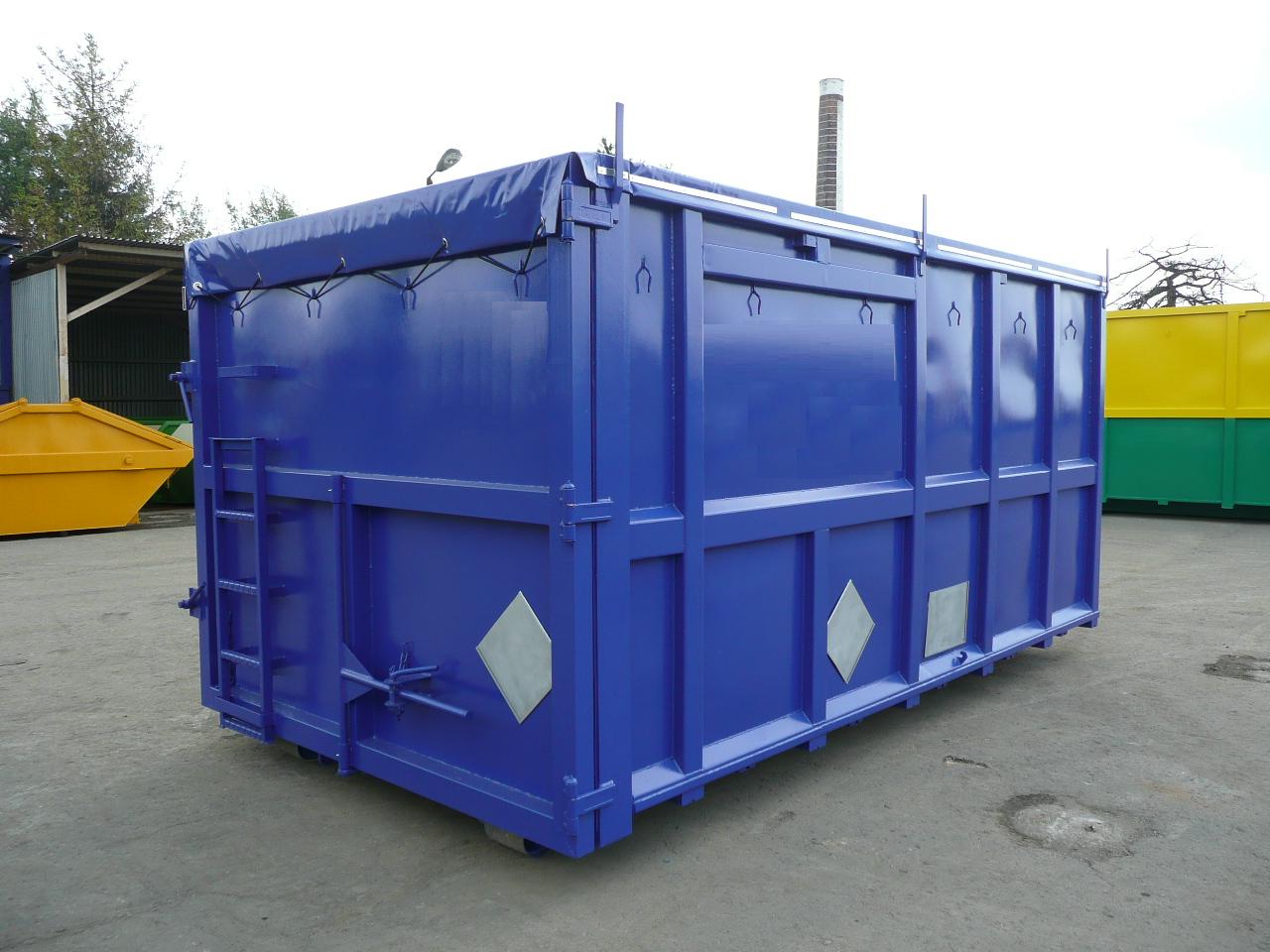

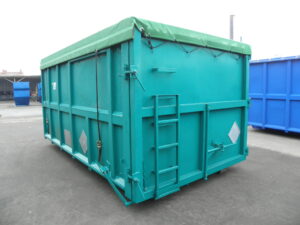

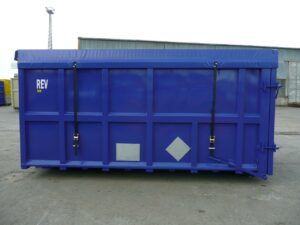

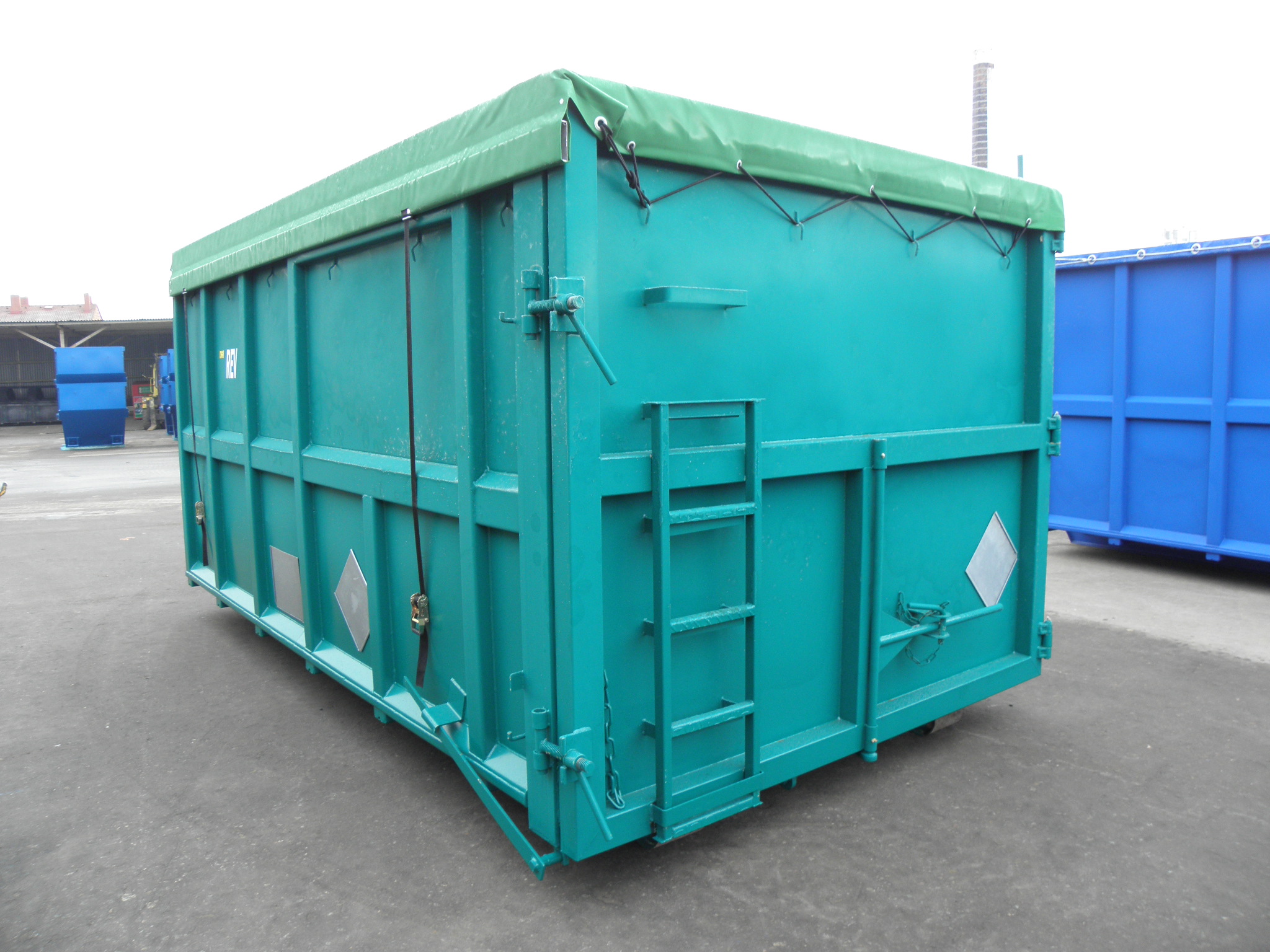

The ABROLL “ADR” container with a tarpaulin is intended for storage and transport of hazardous waste. The containers are certified by Československý Lloyd in accordance with the international KBK convention.

TECHNICAL PARAMETERS

• container manufactured according to DIN 30 722.1
• construction and certification according to the European ADR agreement valid from 1.1.2011
• container approved according to BK1
• feed hook, height – 1570 mm – diameter 50 mm – quality of the material S 355
• supporting frame – INP 180 – outer dimension 1065 mm – reinforced in the middle
• floor – metal sheet, th. 5 mm, quality of the material S 235 JR
• walls – metal sheet, th. 3 mm, quality of the material S 235 JR
• side wall reinforcements – distance 750 mm
• floor reinforcements
• 1x longitudinal reinforcement
• upper profile – square section
• connecting the wall to the floor – 90°
• two steel rollers with lubricators and bronze cases
• removable rolling tarpaulin – attachment to the left or right in the direction of travel
• scrolling using a square aluminum profile with a handle
• securing the tarpaulin – ratchet courts
• single door with rivet seal – tighten on pressure screws
• protection against unintentional opening
• ADR tables for waste labeling
• watertightness test
• the container is manufactured only in the internal dimension: 4200x2300x2000 mm
• load capacity 15,000 kg
• all materials used are certified
• volume: 20 m3
