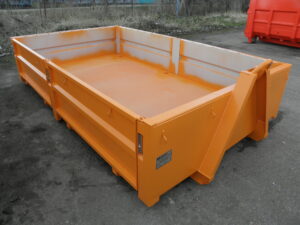

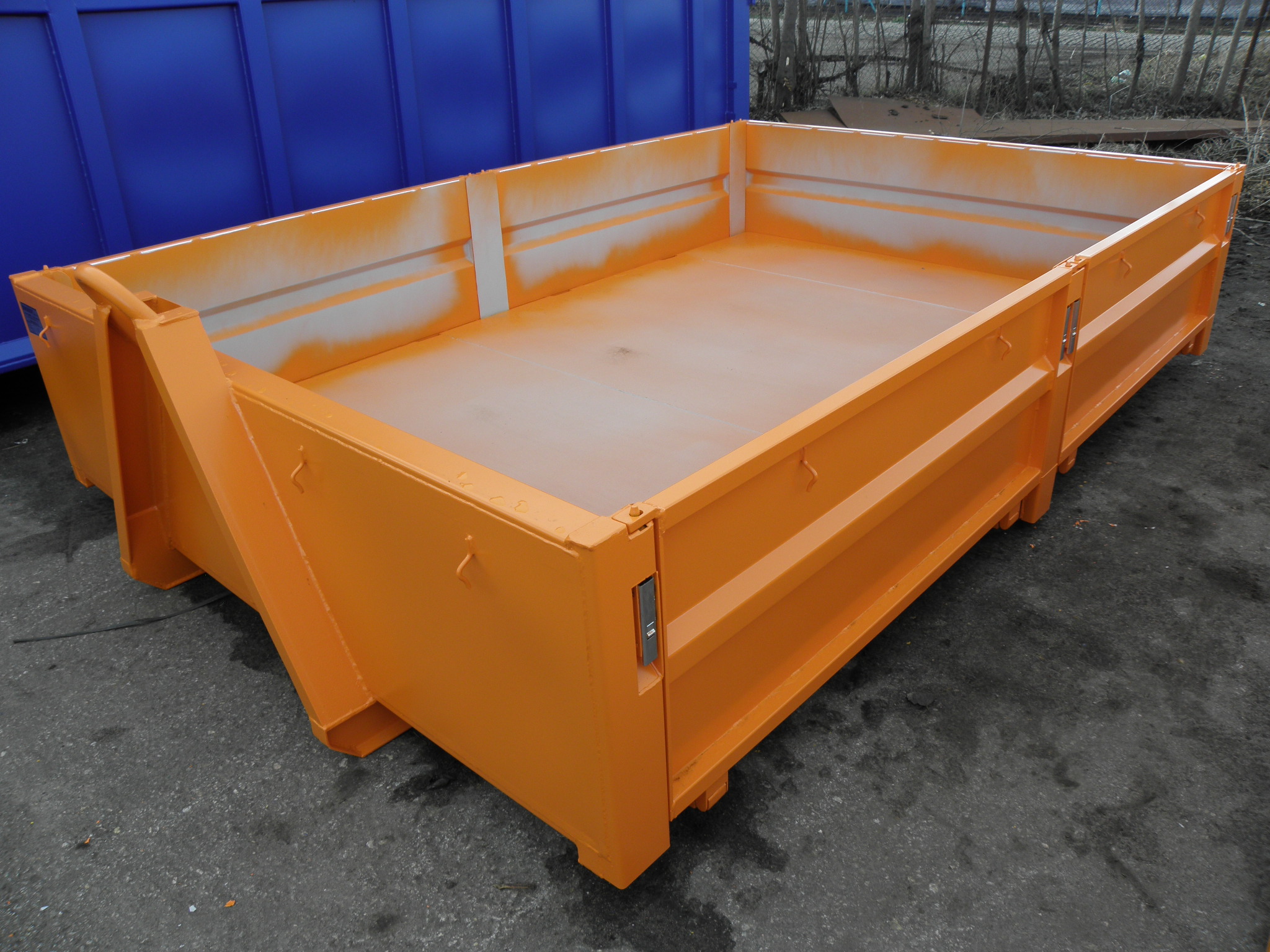

AVIA flatbed skid – hinged rear door
Avia flatbed skid enables easy handling and loading of smaller agricultural and construction machinery and their transport between individual constructions. After removing the sidewalls, even larger building components can be transported on the container.
TECHNICAL PARAMETERS
- container manufactured according to DIN 30 722.3
- feed hook, height – 900 mm – diameter 35 mm – quality of the material S 355
- supporting frame – INP 120 – outer dimension 1065 mm – reinforced in the middle
- floor – metal sheet, th. 3 mm, quality of the material S 235 JR
- front wall – metal sheet, th. 2 mm, quality of the material S 235 JR
- sidewall – metal sheet, th. 1,5 mm, quality of the material S 235 JR
- hinged removable steel sidewalls including removable center pillar

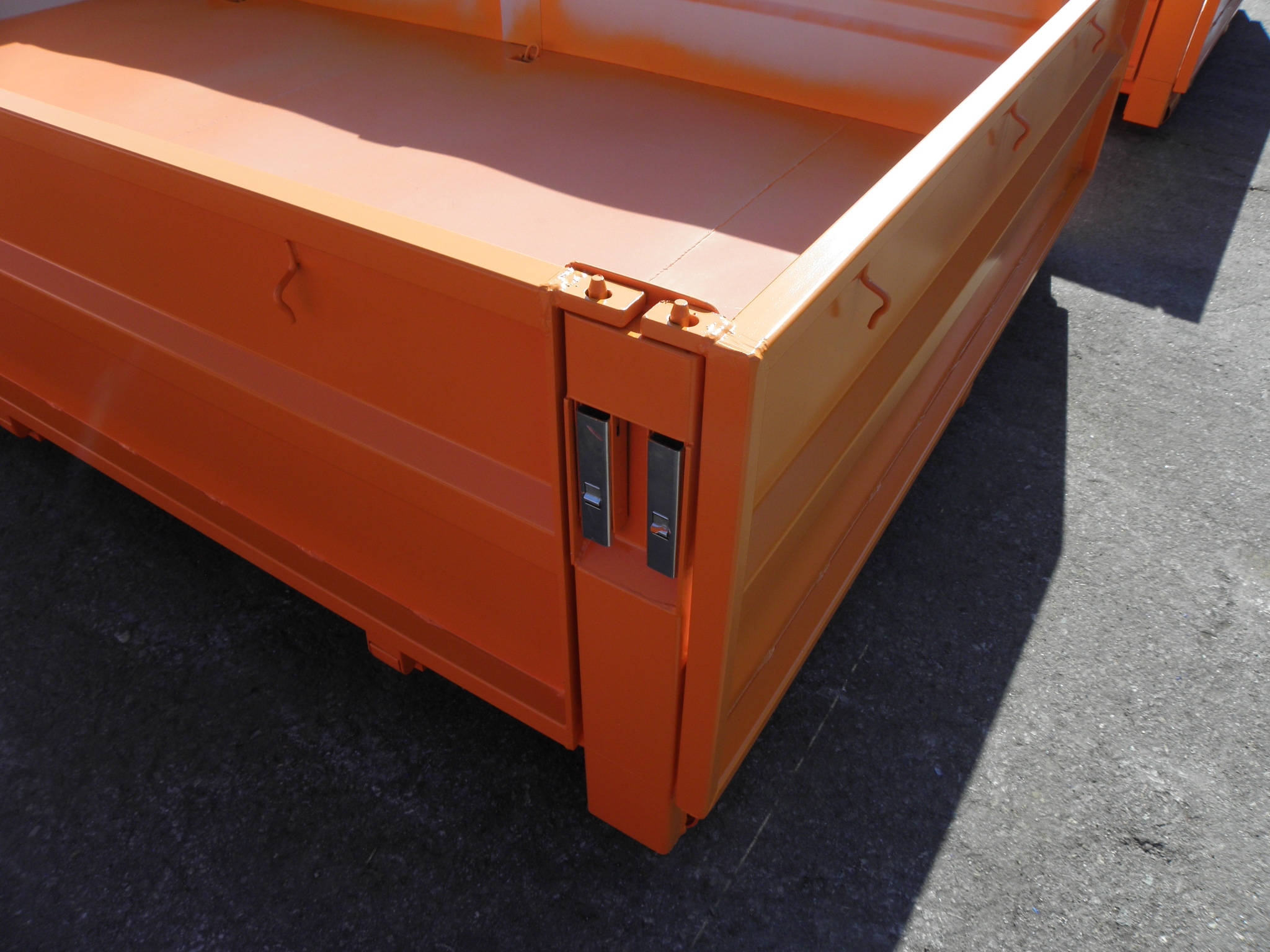

- rear door design: hinged removable reardoor, pillars removable

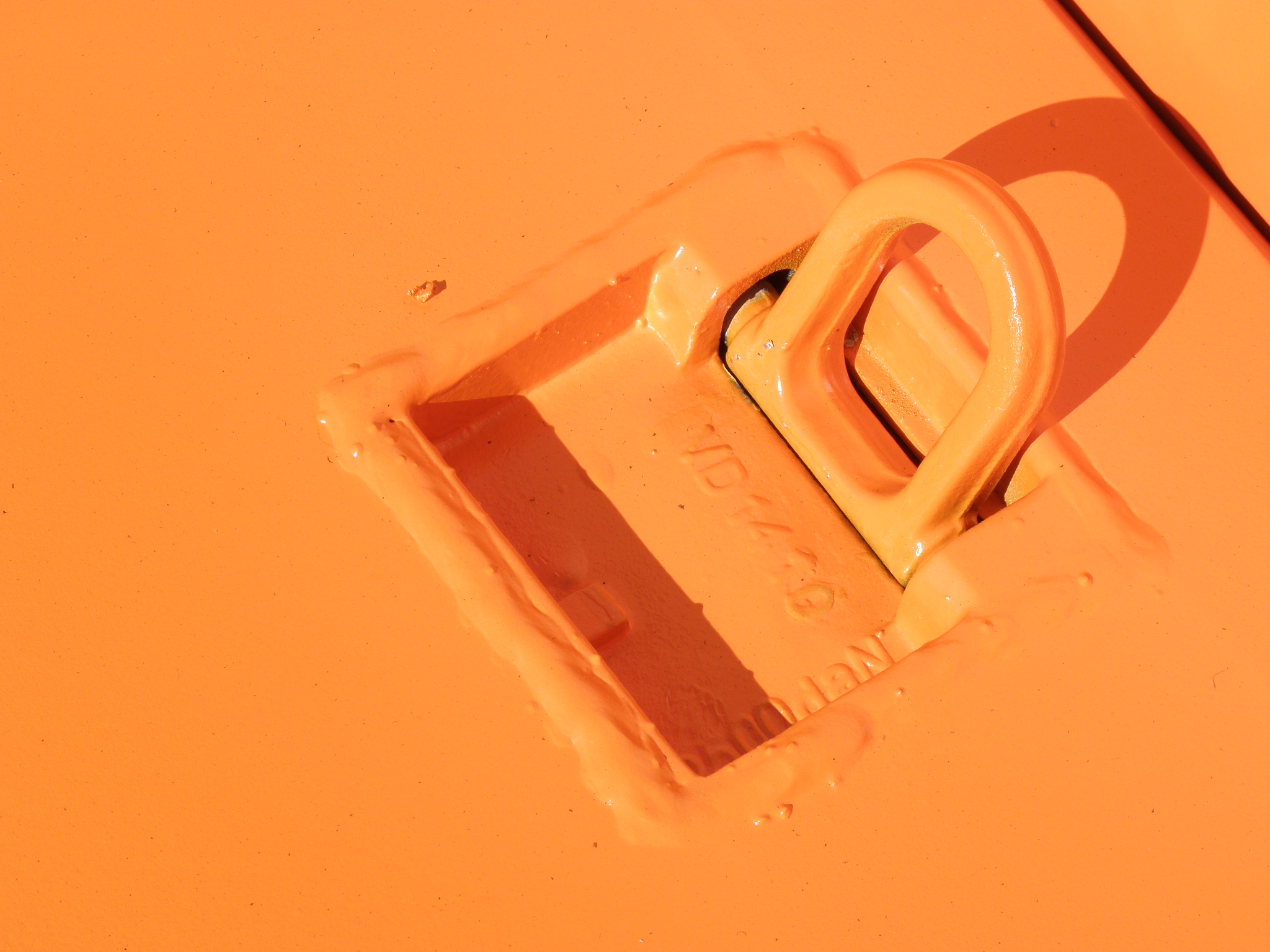

- optional: lashing eyes recessed in the floor for courting transported machines
- container size according to the customer’s wishes
